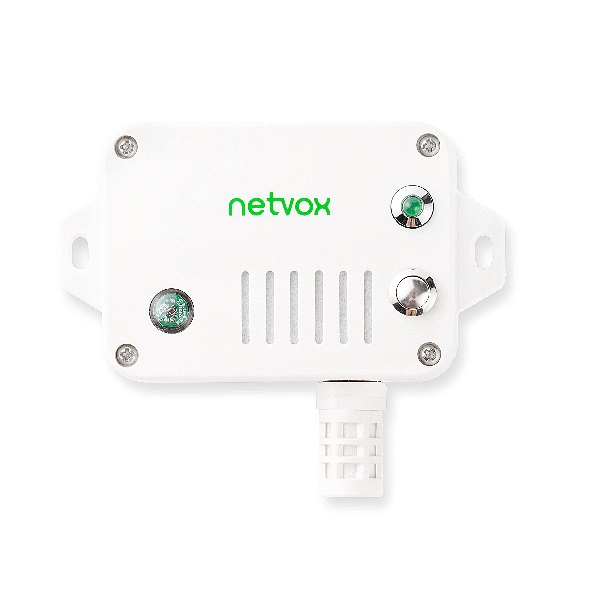

R718UBB series-Wireless Multifunctional CO2 Sensor



R718UBB all-in-one series is a ClassA type testing device based on LoRaWAN open protocol of Netvox, which can support multiple combinations of temperature and humidity, CO2, vibration, atmospheric pressure and illumination sensors, and is compatible with LoRaWAN protocol.

Be the first to review this product

R718UBB all-in-one series is a ClassA type testing device based on LoRaWAN open protocol of Netvox, which can support multiple combinations of temperature and humidity, CO2, vibration, atmospheric pressure and illumination sensors, and is compatible with LoRaWAN protocol.

• Apply SX1276 wireless communication module
• 2 ER14505 batteries AA size in parallel (3.6V / section)
• LoRaWAN™ Class A compatible
• CO2 detection
• Temperature and humidity sensor, vibration sensor, light sensor, and air pressure sensor (see model combination for optional combination)
• The base is attached with a magnet that can be attached to a ferromagnetic material object
• Frequency Hopping Spread Spectrum (FHSS)
• Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
• Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
• Improved power management for longer battery life

Electric:

Power Supply

2x3.6V ER14505 lithium batteries

Operating Voltage

3.1v to 3.65

Standby Current

≤35uA

Receiving Current (max)

11mA @3.3V

Transmitting Current (max)

120mA/3.3V

Battery Voltage Accuracy

±0.1V

Low Voltage Threshold

3.2V

CO2 Measurement Range

0 to 2000ppm(extended range up to 10000ppm)

CO2 Accuracy

± 50ppm ± 3% of reading
Expansion range accuracy ± 10% of reading

Temperature Measurement Range

0°C to 50°C

Humidity Measurement Range

0%RH to 100%RH

Air Pressure Measurement Range

300hPa to 1100hPa

Illuminance Measurement Range

0.01 LUX to 157K LUX

Vibration type

Ball type omnidirectional signal trigger switch


Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbm;
AS923 16dbm;
AU915 20dbm;
CN470 19.15dbm;
EU868 16dbm;
KR920 14dbm;
IN865 20dbm;

Receiving Sensitivity

-136dBm(LoRa,Spreading Factor=12,Bit Rate=293bps );
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )

Data Transfer Rate

LoRa: 0.3kbps~50kbps
FSK: 1.2kbps~300kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)


Physical:
Dimension

Host body:112mm*93.71mm*32mm

Operating Temperature

0°C ~ 50°C

Storage Temperature

-40°C ~ 70°C

Operating Humidity Range

<85%RH (No condensation)
