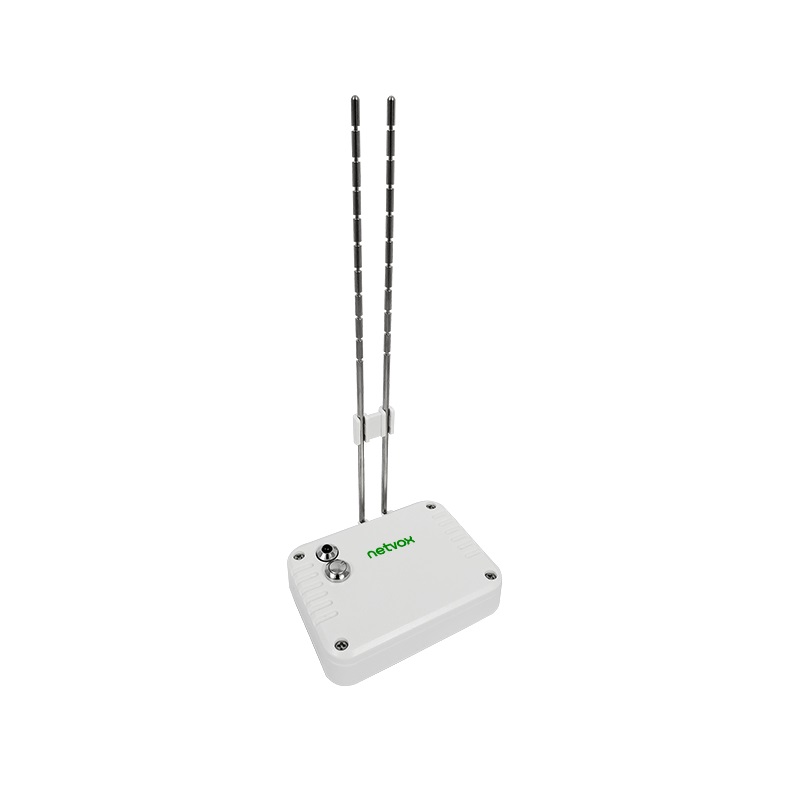

R720F-Wireless Liquid Hand Soap Sensor

In stock

R720F series is a wireless communication device that can detect the existence of hand sanitizer / water leakage. This device is connected with two electrode rods which can be used to detect the state of the insufficient amount of hand sanitizer in the hand sanitizer box or whether there is the water leakage in the detection area.

The shape and orientation of electrode rod can be selected according to the needs (R720FLO,R720FLD,R720FU). The electrode rod can be trimmed to the required length by self according to the demand.
The function of water leakage detection can choose R720FW.

Be the first to review this product

R720F series is a wireless communication device that can detect the existence of hand sanitizer / water leakage. This device is connected with two electrode rods which can be used to detect the state of the insufficient amount of hand sanitizer in the hand sanitizer box or whether there is the water leakage in the detection area.

The shape and orientation of electrode rod can be selected according to the needs (R720FLO,R720FLD,R720FU). The electrode rod can be trimmed to the required length by self according to the demand.
The function of water leakage detection can choose R720FW.

• LoRaWAN Class A compatible
• Apply SX1276 wireless communication module
• 2 ER14505 battery AA SIZE (3.6V / section) parallel power supply
• IP Rating:IP65
• Electrode rod detection
• Improved power management for longer battery life
• Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
• Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
• Battery Life*2:
Please refer to web: http://www.netvox.com.tw/electric/electric_calc.html
At this website, users can find battery lifetime for various models at different configurations.

*1. Actual range may vary depending on environment.
*2. Battery life is determined by sensor reporting frequency and other variables

Electric:

Power supply

2 ER14505 lithium batteries( 3.6 V, 2400mAh / section) in parallel

Battery life

Battery life are 5 years
(condition: ambient temperature 25 ℃, report once every 15mins, txpower = 20dBm, LoRa spreading factor SF = 10)

Stand by Current

24uA

Wake up Current

7.12mA (typical value)

RF Receiving Current

11mA@3.3V"

RF Emission Current

120 mA @ 3 .3 V

Low Voltage Threshold

3.2V

Material

Nickel-plated phosphor bronze

Length

Total length: 201.5±1.5mm
10 sections of the electrode rod have been rolled grooves for easy cutting.


Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbm;
AS923 16dbm;
AU915 20dbm;
CN470 19.15dbm;
EU868 16dbm;
KR920 14dbm;
IN865 20dbm;

Receiving Sensitivity

-136dBm(LoRa,Spreading Factor=12,Bit Rate=293bps );
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )

Data Transfer Rate

LoRa: 0.3kbps~50kbps
FSK: 1.2kbps~300kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)


Physical:

Size

L 88mm* W 65mm* H 19mm

Weight

Approximately 127 g

Environment Temperature Range

-20℃ ~ 55℃

Storage Temperature Range

-40℃ ~ 85℃

Environment Humidity Range

<90% RH (non-condensing)
