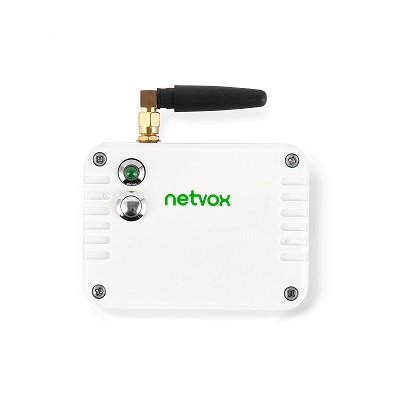

R720G-Wireless GPS Tracker with tilt angle



R720G is a compact GPS tracking device with built-in three-axis acceleration sensor. And transmits the detected data to other devices through the wireless network for display, which adopts the SX1276 wireless communication module.

Be the first to review this product

R720G is a compact GPS tracking device with built-in three-axis acceleration sensor. And transmits the detected data to other devices through the wireless network for display, which adopts the SX1276 wireless communication module.

• Apply SX1276 wireless communication module
• 2 ER14505 batteries AA size in parallel (3.6V / section)
• LoRaWAN™ Class A compatible
• Built-in GNSS module including GPS, BeiDou, Galileo, GLONASS, QZSS
• Built-in 3-axis accelerometer
• The base is attached with a magnet that can be attached to a ferromagnetic material object
• Frequency Hopping Spread Spectrum (FHSS)
• Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
• Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
• Improved power management for longer battery life

Electric:

Power Supply

2x3.6V ER14505 lithium batteries

Operating Voltage

3.1v to 3.65

Standby Current

About 60uA

RF Transmitting Current

LoRa: 120mA @ 3.3V (Max)

RF Receiving Current

11mA @ 3.3V; GPS: 30mA@3.3V

Battery Voltage Accuracy

±0.1V

Low Voltage Threshold

3.2V

Constellation

concurrent reception of GPS and Galileo with QZSS, SBAS

Sensitivity

-148 dBm cold start / -160 dBm hot start

Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbm；
AS923 16dbm；
AU915 20dbm；
CN470 19.15dbm；
EU868 16dbm；
KR920 14dbm；
IN865 20dbm；

Receiving Sensitivity

-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )；
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in GPS antenna; External LoRa antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )

Data Transfer Rate

LoRa: 0.3kbps～50kbps
FSK: 1.2kbps～300kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)


Physical:
Dimension

88mm*65*19mm
Operating Temperature

-20°C ~ 55°C
Storage Temperature

-40°C ~ 85°C

Operating Humidity Range

<90%RH (No condensation)
