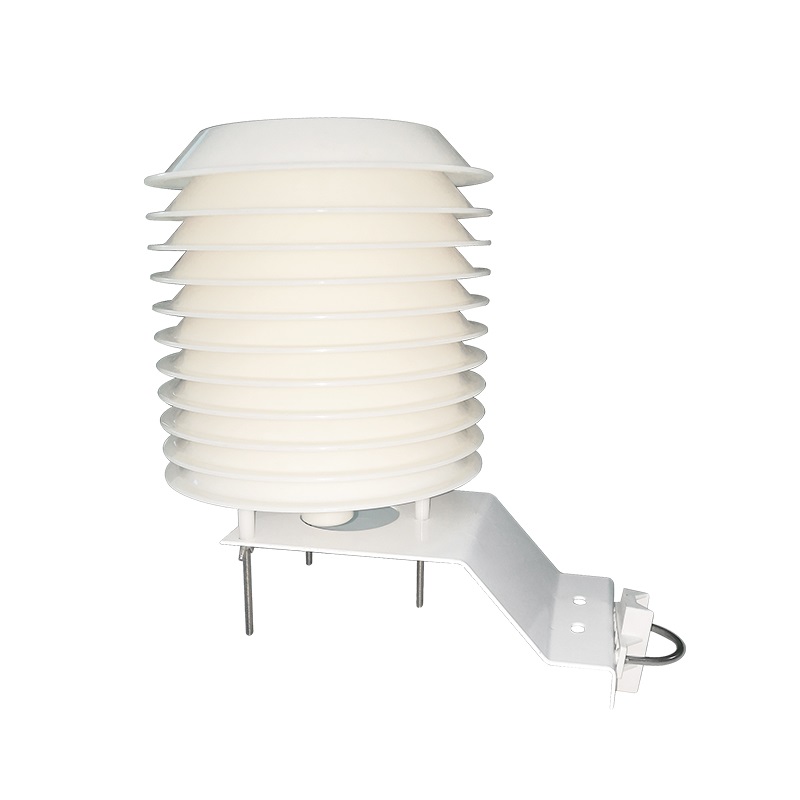

RA0715Y-Wireless Outdoor CO2/Temperature/Humidity Sensor



The device is a LoRaWAN™ device compatible with LoRaWAN™ protocol (Class A). RA0715Y Wireless Outdoor CO2/Temperature/Humidity Sensor

Be the first to review this product

The device is a LoRaWAN™ device compatible with LoRaWAN™ protocol (Class A). RA0715Y Wireless Outdoor CO2/Temperature/Humidity Sensor

Electric:

Power Supply

Adapter (12VDC/1A)

Operating Current 1

40mA (RX)

Operating Current 2

80mA (TX)


Frequency:

Physical:

Dimension

Mask body: D220mm*H380mm,
Internal main body size: 111mm*86mm*41mm

Weight

Partial weight of the mask body (with lithium  inside the mask body, main body, noise sensor): About 3223g

Mask Life Time

Cover material is ABS material, can be used outdoors for 3 years

Operating Temperature Range

-20℃ ～ 55℃

Operating Humidity Range

15%RH～90%RH (no condensation)

Storage Temperature range

-40℃ ～ 85℃

IP Rating

IP55
